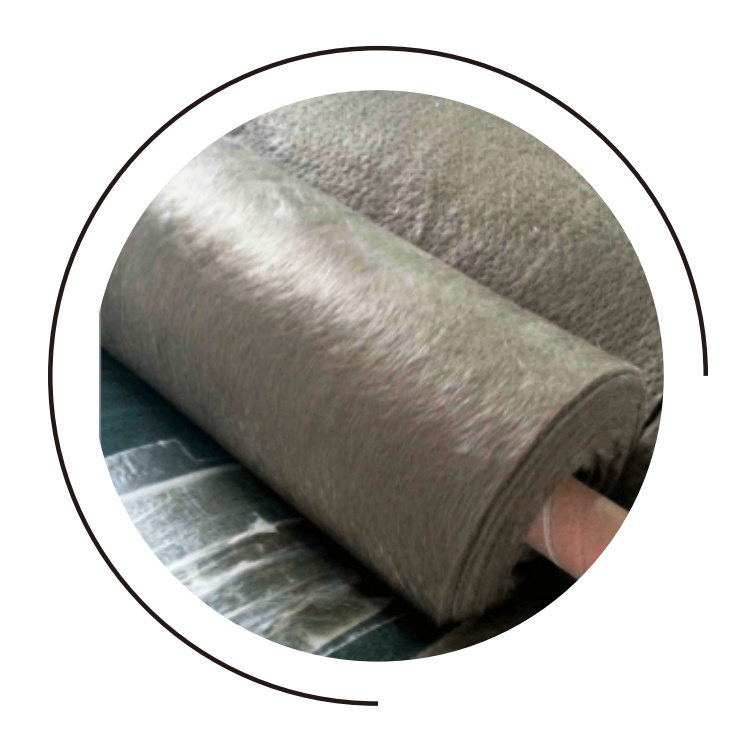

BF826 Series

General-purpose products
Suitable for pultrusion, filament winding and weaving processes, compatible with unsaturated polyester resin (UP), epoxy resin (EP) and vinyl ester resin (VE) systems. After reinforcement, basalt fibers can be fabricated into pultruded profiles, pipeline winding layers, two-way multiaxial fabrics, mesh cloth and woven fabrics. They are widely used in construction, pipeline engineering, high-temperature filtration and other industries.

Product introduction
Our basalt direct untwisted roving is manufactured via an innovative tank furnace process with a 2400-hole large bushing plate, forming the roving in a single continuous step. Produced from homogeneous basalt raw ore, this product inherits the superior properties of basalt fiber: high tensile strength, high modulus, outstanding temperature resistance, excellent chemical corrosion resistance and reliable electrical insulation. It delivers stable performance, consistent quality and low dispersion coefficient.

Product features
Superior mechanical properties and strong interfacial adhesion with resins
Outstanding thermal resistance and excellent electrical insulation
Excellent resistance to chemical corrosion, low fuzz content

Technical indicators

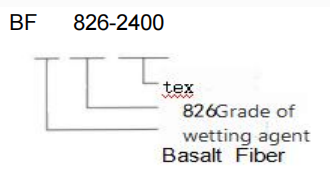

Series product	Infiltrating agent type	Diameter(μm)	tex(g/km)	combustible content(%)	Moisture rate(%)	breaking strength(N/tex)
		GB/T 7690.5	GB/T 7690.1	GB/T9914.2	GB/T9914.1	GB/T 7690.3
BF826-600	Silane-enhanced	14±1	600±30	0.45±0.10	<0.1	≥0.4
BF826-1200		16/19±1	1200±60
BF826-2400		17/22±1	2400±120
BF826-4800		24±1	4800±240

Packaging
Each yarn ball is packaged with heat shrink film or stretch film and then placed on a tray or carton.

Yarn ball height mm(in)	260±5	pallet length mm(in)	1140	layer	3	4
Inner diameter of the yarn ball mm(in)	161	pallet width mm(in)	1140	The number of yarn balls in each layer	16	16
Outer diameter of the yarn ball mm(in)	280±5	pallet height mm(in)	900/1160	The number of yarn balls in each pallet	48	64
Weight of yarn ball kg(lb)	18-20			Weight per pallet kg(lb)	700-1000	1000-1300

Storage: It should be kept in a dry and cool place to prevent moisture. It is recommended to maintain a balanced indoor temperature. It should remain in its original packaging before use.
Note: if you have special request, please contact us. Product yarn back way: retreated inside outside back.
